LEAK REPAIR CLAMPS

Description

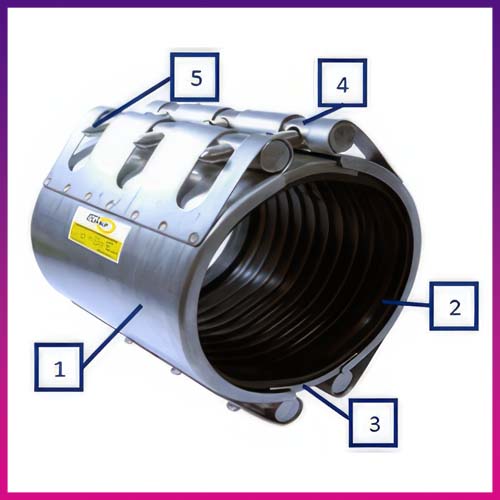

WRAP CLAMP WC1 LEAK REPAIR CLAMPS

NBR: Water (drinking water, wastewater), gas, oil, gasoline and hydrocarbons, bases, slurries, fuels (petroleum, diesels, gasoline)
Viton: Oil, water (drinking water, wastewater, steam), solvents (Acetone, toluene, MEK, ethyl alcohol), acids (hydrochloric acid, sulfuric acid), chemical (ethylene glycol, xylenes, ammonia), hydrocarbon, bases, slurries, fuels (petroleum, diesels, gasoline), gases (LNG, LPG), organic salts

- Applicable for pipeline pressure up to 363 psi (26 kg/cm²)
- Suitable for all pipe materials
- Acts as compensator for thermal expansion and dampens vi

- NBR: -20 °C (-4 °F) to 100 °C (212 °F)
- Viton: -95 °C (-139 °F) to 300 °C (572 °F)

Model	O.D		O.D. Range mm	Length, L mm	Max Expansion Distance mm	MAX Pipe Distance (for Connection), G mm	Pressure Psi (kg/cm²)	Weight Kg
Model	Inch	mm	O.D. Range mm	Length, L mm	Max Expansion Distance mm	MAX Pipe Distance (for Connection), G mm	Pressure Psi (kg/cm²)	Weight Kg
WC1-25A60	1	34	33-35	57	30	15 ± 10	363 (26)	0.2
WC1-32A60	1 ¼	42	42-44	57	30	15 ± 10	363 (26)	0.35
WC1-40A60	1 ½	48.6	47-49	60	30	15 ± 10	363 (26)	0.35
WC1-50A80	2	60.5	59-61	80	40	20 ± 15	363 (26)	0.8
WC1-65A140	2 ½	76.3	75-78	140	100	20 ± 15	363 (26)	1.5
WC1-80A200	3	89.1	88-91	203	150	25 ± 20	232 (16)	3.1
WC1-100A200	4	114	106-117	203	150	25 ± 20	232 (16)	3.4
WC1-125A200	5	140	138-142	204	150	30 ± 25	232 (16)	4.7
WC1-150A200	6	168	158-170	204	150	30 ± 25	232 (16)	5.9
WC1-200A255	8	219	216-222	255	150	30 ± 25	174 (12)	12.2
WC1-250A255	10	273	272-276	255	150	30 ± 25	174 (12)	13.5
WC1-300A255	12	325	324-328	255	150	30 ± 25	145 (10)	16.3

WRAP CLAMP WC2 LEAK REPAIR CLAMPS

NBR: Water (drinking water, wastewater), gas, oil, gasoline and hydrocarbons, bases, slurries, fuels (petroleum, diesels, gasoline)
Viton: Oil, water (drinking water, wastewater, steam), solvents (Acetone, toluene, MEK, ethyl alcohol), acids (hydrochloric acid, sulfuric acid), chemical (ethylene glycol, xylenes, ammonia), hydrocarbon, bases, slurries, fuels (petroleum, diesels, gasoline), gases (LNG, LPG), organic salts

- Applicable for pipeline pressure up to 174 psi (12 kg/cm²)
- Suitable for all pipe materials
- Acts as compensator for thermal expansion and dampens vibration

- NBR: -20 °C (-4 °F) to 100 °C (212 °F)
- Viton: -95 °C (-139 °F) to 300 °C (572 °F)

Model	O.D		O.D. Range mm	Length, L mm	Max Expansion Distance mm	MAX Pipe Distance (for Connection), G mm	Pressure Psi (kg/cm²)	Weight Kg
Model	Inch	mm	O.D. Range mm	Length, L mm	Max Expansion Distance mm	MAX Pipe Distance (for Connection), G mm	Pressure Psi (kg/cm²)	Weight Kg
WC2-300A255	12	325	324-328	255	150	30 ± 25	145 (10)	19.2
WC2-350A255	14	377	375-379	255	150	30 ± 25	145 (10)	22.0
WC2-400A255	16	426	425-429	255	180	30 ± 25	145 (10)	24.0
WC2-450A255	18	480	476-480	255	180	30 ± 25	145 (10)	25.8
WC2-500A255	20	530	528-532	255	180	35 ± 25	116 (8)	27.0
WC2-550A255	22	559	557-560	255	180	35 ± 25	116 (8)	28.2
WC2-600A255	24	610	608-612	255	180	35 ± 25	116 (8)	30.0
WC2-650A255	26	660	658-663	255	180	35 ± 25	116 (8)	32.0
WC2-700A255	28	711	909-714	255	180	35 ± 25	101 (7)	34.2
WC2-750A255	30	762	759-765	255	180	35 ± 25	101 (7)	36.6
WC2-800A255	32	813	810-816	255	180	35 ± 25	101 (7)	40.0
WC2-850A255	34	864	861-867	255	180	35 ± 25	101 (7)	42.2
WC2-900A255	36	914	911-917	255	180	35 ± 25	101 (7)	45.7
WC2-950A255	38	965	962-968	255	180	35 ± 25	101 (7)	48.5
WC2-1000A255	40	1016	1013-1019	255	180	35 ± 25	101 (7)	51.9
WC2-1050A255	42	1067	1064-1070	255	180	35 ± 25	101 (7)	55.4
WC2-1100A255	44	1118	1115-1121	255	180	35 ± 25	101 (7)	59.7
WC2-1150A255	46	1168	1165-1171	255	180	35 ± 25	101 (7)	64.1
WC2-1200A255	48	1219	1216-1221	255	180	35 ± 25	101 (7)	68.5
