Description
FEATURES:
- Repairs leak in 30 minutes
- Applicable to pipes up to 18″ (457 mm) diameter
- Applicable on any metal or non-metal pipes
- Repairs T-joint, elbow joint, valve thread, valve body
- Withstand pressure up to 400 psi (28 kg/cm2)
- Withstand temperature up to 200 °C (392 °F)
- Safe for drinking water and resistant to most chemicals
- Reinforce and strengthen pipe after repair
- Permanent repair and extend service life of pipes
APPLICABLE MATERIAL:
- Steel
- Copper
- Aluminium
- Galvanized steel
- PVC
- CPVC
- Stainless steel
- Polyethylene
- Polypropylene
- Cast-iron
- Concrete
- FRP/GRE
CHEMICAL RESISTANCE:
- Oil
- Water (drinking water, wastewater, steam)
- Solvents (acetone, toluene, MEK, ethyl alcohol)
- Mild acids (hydrochloric acid, sulfuric acid) and alkalis
- Chemical (ethylene glycol, xylenes, ammonia)
- Hydrocarbons
- Bases
- Slurries
- Fuels (petroleum, diesels, gasoline)
- Gases (LNG, LPG)
- Organic salts
WORKING TIME (FIBERGLASS TAPE):
CURING TIME:
- 1 minute at 30 °C (86 °F)
- 30 minutes at 30 °C (86 °F)
- Heat may be applied to decrease curing time
- Unopened foil pouch may be immerse in cold water prior to repair to add working and curing time.
APPLICATION:
-
- Pipe repairs
- offline repairs
- sealing joints
- hazardous material spill control
- reinforce thinning walls
- Abrasion protection
- Structural reinforcement
- Repairs in hard to reach areas
- Underwater repairs
OPERATING TEMPERATURE:
OPERATING PRESSURE:
-
- Continuous – From -29 °C (-20 °F) up to 200 °C (392 °F)
- Intermittent – From 200 °C (392 °F) up to 320 °C (570 °F)
- Recommended for pressure up to 400 psi (28 kg/cm2)
- (Results vary depending on pipe size, type of pipe, hole size, pipe content and method of application)
APPLICABLE INDUSTRIES:
Building & Facilities
Electronics
Industrial Processing
Irrigation
Oil & Gas
Chemical
Manufacturing Plants
Marine
Military
Offshore
Food Processing
Petrochemical
Pharmaceutical
Power Generation
Pulp & Paper
Wastewater
Water Distribution
TECHNICAL DATA:
Pressure tested | : | 1/2″ (15 mm) steel pipe with 1/8″ (3 mm) hole when repaired with Wrap Seal withstands 4000 psi (281 kg/cm2) |
1/2″ (15 mm) steel pipe with 1/2″ (13 mm) hole when repaired with Wrap Seal withstands 600 psi (42 kg/cm2) | ||
Tensile strength | : | 3920 psi (276 kg/cm2) |
Bond strength | : | 230 psi (16 kg/cm2) |
Tensile elongation | : | 1.2 % ± 0.7 % |
Compressive strength | : | 13750 ± 530 psi (967 ± 37 kg/cm2) |
Yield strength | : | 2260 psi (159 kg/cm2) |
Cured hardness | : | 82 Shore D |
Pipe size | Number of rolls / size required | ||
50 psi (4 kg/cm2) 10 plys | 150 psi (11 kg/cm2) 15 plys | 400 psi (28 kg/cm2) 20 plys | |
½” (15mm) | 1 A | 1 A | 1 A |
¾” (20mm) | 1 A | 1 A | 1 A |
1″ (25mm) | 1 A | 1 A | 2 A |
1¼” (32mm) | 1 A | 2 A | 3 A |
1½” (40mm) | 2 A | 2 A | 1 B |
2″ (50mm) | 1 B | 1 B | 1 B |
2½” (65mm) | 1 B | 1 B | 2 C |
3″ (80mm) | 1 B | 2 C | 2 C |
4″ (100mm) | 1 B | 2 C | 3 C |
Pipe size | Number of rolls / size required | ||
50 psi (4 kg/cm2) 10 plys | 150 psi (11 kg/cm2) 15 plys | 400 psi (28 kg/cm2) 20 plys | |
5″ (125mm) | 2 C | 2 C | 3 C |
6″ (150mm) | 2 C | 2 C | 4 C |
8″ (200mm) | 2 C | 3 C | 5 C |
10″ (250mm) | 3 C | 4 C | 6 C |
12″ (300mm) | 4 C | 5 C | 8 C |
14″ (350mm) | 4 C | 6 C | 8 C |
16″ (400mm) | 5 C | 7 C | 9 C |
18″ (450mm) | 5 C | 8 C | 9 C |
> 18″ (450mm) | Contact SealXpert for recommendations |
Roll size | A (2″ x 5′) (50mm x 1.2m) | A (2″ x 6′) (50mm x 1.8m) | B (2″ x 12′) (50mm x 3.6m) | B (3″ x 9′) (75mm x 2.7m) | C (4″ x 12′) (100mm x 3.6m) |

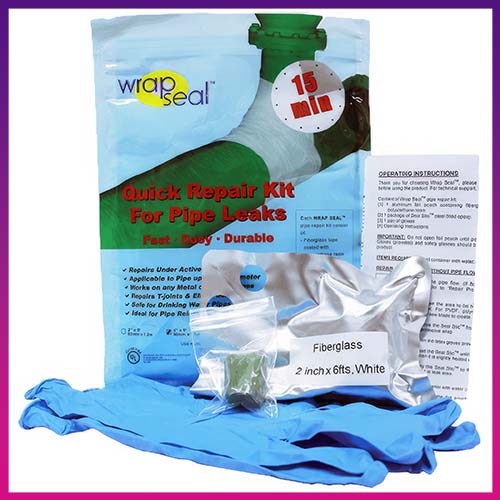

WRAP SEAL OFFLINE LEAK REPAIR PROCEDURE:
1
2
3
Stop the pipe flow
Stop the pipe flow
Stop the pipe flow
4
5
6
Apply the Seal Stic to fill in holes or crack of the damaged or leak area.
Immerse the Wrap Seal Fiberglass Tape into water
Wrap the Wrap Seal Fiberglass Tape around the repair area as tightly and evenly as possible, using the entire roll
7
8
9
Discard the plastic tube at the end of the roll
Wet gloves in water and quickly compress the bubbling resins back into the fiberglass wrap
Continue to polish the wrap until all bubbling has stopped. Repair completed with smooth and hard ivory appearance
