Description
FEATURES:
- Corrosion barrier and isolator
- High adhesion strength
- Excellent alkali and acid resistance
- Ease of application by using paint rollers and paint brush
- Applicable for pipes, tanks, and large surfaces
APPLICABLE MATERIAL:
- Galvanized steel
- Copper
- Stainless steel
- Carbon steel
- Concrete
- Polyethylene
- FRP/GRE
CHEMICAL RESISTANCE:
- MEK
- Diesel
- Ethylene glycol
- Ammonia
- Acetone
- Crude oil
- Toluene
- Ethyl alcohol
- Gasoline
- Sodium hydroxide
WORKING TIME:
CURING TIME:
- 10 minutes at 30 °C (86 °F)
- 2 hours at 30 °C (86 °F)
APPLICATION:
-
- Applied as corrosion coating on pipes, storage tanks, vessels, exhaust lines, bulkheads, machineries, joints, and large surfaces.

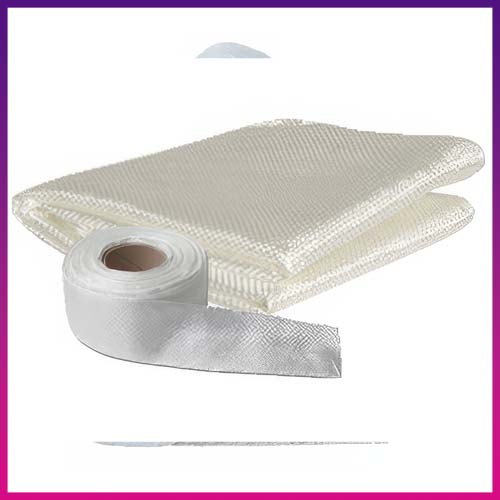

- Applied with Wrap Seal PLUS Uncoated Fiberglass Tape, Chopped Strand Mat or Surface Tissue for reinforcement, bonding and lamination
APPLICABLE INDUSTRIES:
Building & Facilities
Electronics
Industrial Processing
Irrigation
Oil & Gas
Chemical
Manufacturing Plants
Marine
Military
Offshore
Food Processing
Petrochemical
Pharmaceutical
Power Generation
Pulp & Paper
Wastewater
Water Distribution
TECHNICAL DATA:
Colour – Resin | : | Natural |
– Activator | : | Straw colour |
Viscosity | : | 20000 – 40000 cps at 21 °C (70 °F) |
Specific gravity | : | 1.85 |
Compressive strength | : | 24500 psi (1723 kg/cm2) |
Tensile strength | : | 35000 psi (2461 kg/cm2) |
Bond strength | : | 500 psi (35 kg/cm2) |
Flexural strength | : | 42000 psi (2953 kg/cm2) |
Flexural modulus | : | 1.6×106 psi (112491 kg/cm2) |
Barcol hardness | : | 40 – 50 Shore D |
Coverage area (per set) | : | 0.15 m2 at 3 mm thickness |
WRAP SEAL PLUS CORROSION REPAIR PROCEDURE:
1
2
3

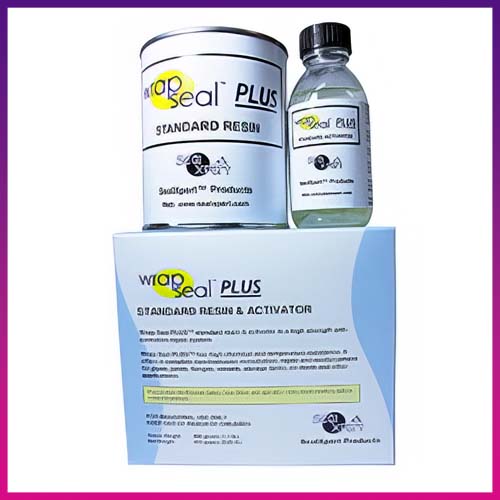

Mix and stir Wrap Seal PLUS Resin and Activator for at least 1 minute until well mixed
4
5
6
Apply two coats of activated resin evenly over the area to be repaired and allow to cure

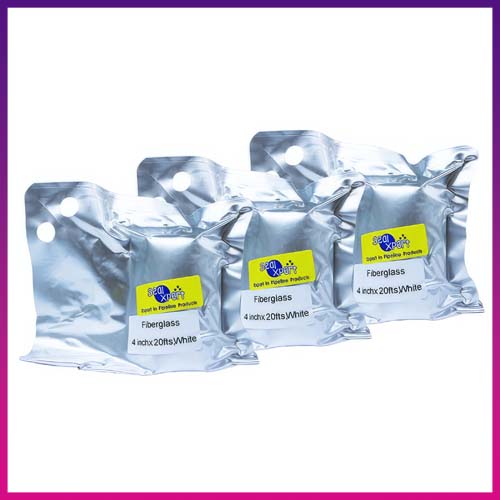

Immerse Wrap Seal PLUS Fiberglass Repair Tape into water
Wrap the fiberglass repair tape as tightly and evenly as possible, with at least 50% overlap over affected pipe length
7
8
9
Discard the plastic tube at the end of the roll
Wet gloves in water and quickly compress the bubbling resins back into the fiberglass wrap until all bubbling has stopped. Repair completed with smooth and hard ivory appearance
Apply Several layers of wrap Seal PLUS Surface Tissue or Wrap Seal Plus Chopped
Strand Mat onto the affected area.
